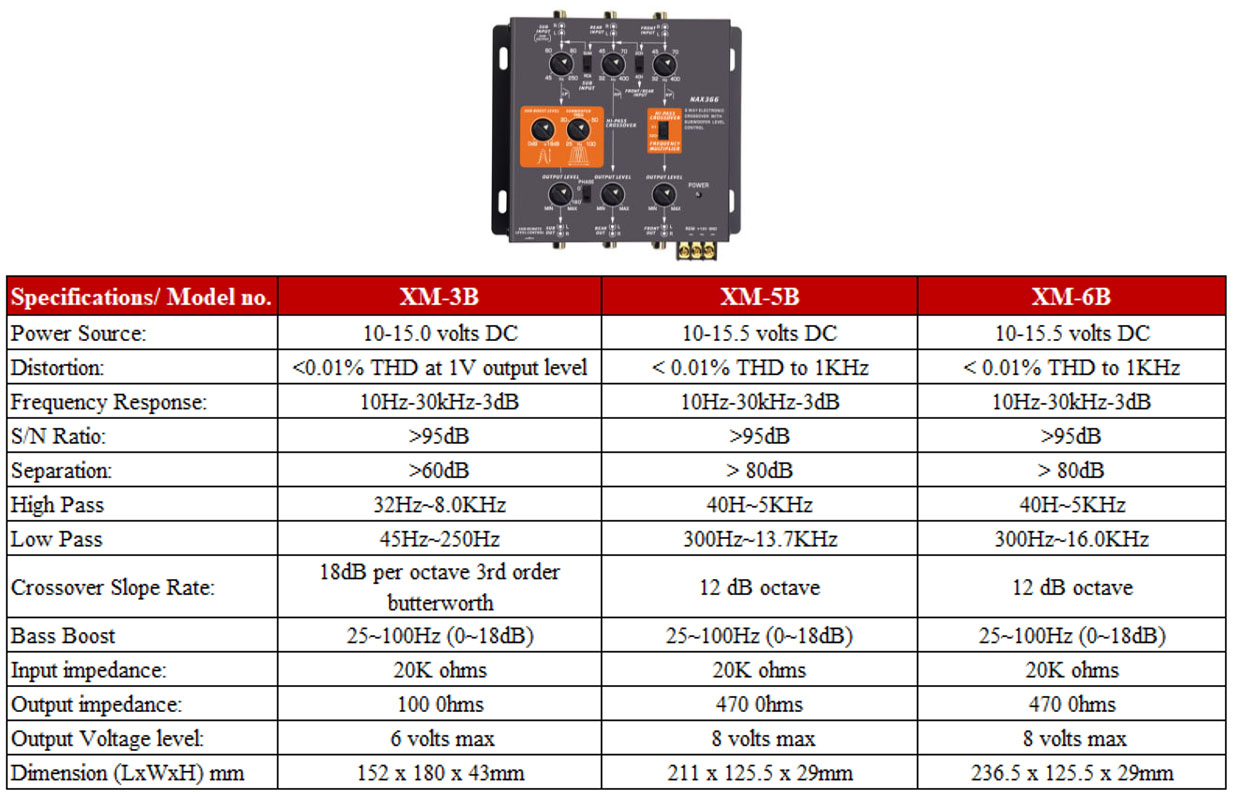

• Power Source: 14.4 volts Dc negative ground
• input current: 0.5 amp max
• Disortion: 0.01% THD at 1V output level
• Frequency Response: 10Hz-30kHz-3dB
• S/N Ratio: >100dB
• Separation: 60dB
• Crossover Slope Rate: 18dB per octave 3rd order butterworth
• Input lmpedance: 20K ohms
• Output lmpedance: 100 0hms
• Output Gain: 1:2(+6db)
• Output Voltage level: 5 volts max
• Dimensions: 152mmx180mmx43mm
